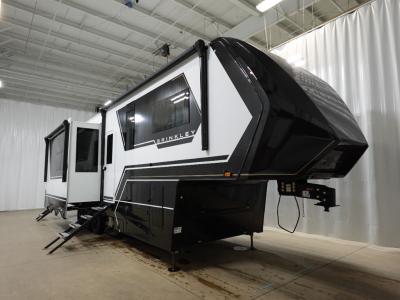

Brinkley Model G Toy Hauler Fifth Wheels

Standard Features (2026)

Exterior & Storage

• 3-Way Pass-through Storage w/ Multi-Functional Flip-Up Bulkhead Dividers (Best-in-Class)
• I-Beam Storage – Industry 1st (Patent Pending)
• 3x 48” Slide-Tray Storage Drawers (300 lbs. Capacity Each)
• Heated Pass Thru Storage Area
• Push-Button Power Cord Reel
• Air Compressor (135 PSI) w/ 50’ Retractable Air Hose
• 45’ Retractable Extension Cord
• 65' Retractable City Water Hose
• Brinkley On-Command™ Docking & Utility Center
• EZ Winterization Valve in Utility Center
• 2x 90-Degree Brass Elbows for Docking Station Water Hoses
• Upgraded Holding Tanks w/ True Capacities
• Electric Waste Valves w/ Indicator Light & Manual-Override (Enclosed & Heated)
• 3x Power Side Awnings (Black)
• Dotless COB Neon LED Awning Lighting (Dimmable)
• Slide-Out Topper Ready Factory Prep
• Slide-Out Toppers (optional)
• Square Euro Frameless Windows w/ up to 6? Openings (Industry 1st)
• Dual Pane Square Euro Frameless Windows w/ up to 6? Openings (optional)
• Sleek & Clean Styling w/ Automotive-Grade Exterior Graphics
• Premium Exterior Package with Full Body Paint (optional)
• Silver & Black (optional)
• White & Black (optional)
• Gold & Black (optional)
• Metallic (optional)
• LED Flood Lights (At Fuel & Water Connection)
• RGBW Colored Dotless COB Neon LED Front Cap Lighting (Multi-Zone Controller w/ Customizable Light Patterns & Themes) (Premium Build Package)
• Integrated Front Cap & Midship Turn Signals (Premium Build Package)
• RGBW Colored Underbody Ground Lighting (Dimmable)
• Automotive Grade Front Cap w/ Integrated Lights & Lenses (Patent Pending)
• 3x Dotless COB Neon LED Pass-through Storage Area Lights
• Gen & Solar Storage Area Motion Activated Lighting
• Portable 14.5’ Telescoping Ladder
• Tough-Ply Floor & Walls in Storage Compartments (Gray)
• Slam Latch Baggage Doors
• Clear2Go™ Baggage Door Indicator Light
• Deluxe Entrance Package
  • Oversized 30" x 76" Entry Door
  • Keyless Entry
  • Integrated Blackout Window Shade
  • Child/Pet Screen Protector
  • Screen Assist Push Bar Opener
  • Screen Shot Automatic Screen Door Closer
  • Extra-Wide Tip-To-Clean Entry Steps w/Deep Landing Step
  • 54" Telescoping Entry Handle (Extends to Bottom Step)

Running Gear & Towing

• 3x Heavy-Duty 7k lbs. Axles w/ Hydraulic Disc Brakes & 8k lbs. Leaf Springs
• MORryde Independent Suspension (IS) w/ 24k lbs. Capacity & Hydraulic Disc Brakes (optional)
• 30k Gen-Y® Executive Torsion Flex Hitch (Fifth Wheel) (optional)
• Gen-Y® Executive Torsion Flex Hitch Pin-Box (Gooseneck w/ SnapLatch)
• SumoSprings® (Unmatched Stability, 68% Reduction in G-Forces)
• Commercial Grade Load Range H 16-Ply Michelin Uniroyal Tires
• Banded Tire Pressure Monitoring System (TPMS) w/ Wireless Display
• Counteract Tire Balancing Beads
• 17.5? Custom Aluminum Luxury Wheels
• Road Debris Galvanized Wheel Well Shields
• Dexter E-Z Flex High-Performance Suspension Equalizer System
• MAX-Vision™ Reverse Lighting System (Includes High-Lumens Under-Bumper Lights, Patio, 2x Awning, Underbody, & Flood Lights)
• Upgraded 6' Coiled Breakaway Safety Cable
• 2? Rear Receiver Hitch w/ 4-Way Connector (300 lbs. Tongue Weight 3,000 lbs. GTW) (3250 Only)

Solar, Electric & HVAC

• FlexPower® 5500 w/ EFI Dual Fuel (Gas or LP) Inverter Generator w/ On-Demand Power
• Victron Smart Energy Package: (Premium Build Package)
  • 3000w Victron Pure Sine Wave Inverter (Premium Build Package)
  • 50 Amp MPPT Solar Charge Controller (Premium Build Package)
  • Orion-Tr Smart 30 Amp DC-DC Charger (Non-Isolated) (Premium Build Package)
  • Cerbo GX Performance Optimizing Communication Hub (Premium Build Package)
• 800w of Solar Panels
• 200 Ah of Lithium Batteries (Self-Heating)
• Southwire Transfer Switch w/ Surge, Low Voltage, Miswired Pedestal, & Open +/- Protection (Premium Build Package)
• Solar Disconnect Switch
• 60 Gallon Fuel Station w/ Pump for Generator/Fuel Pump (2x 30 Tanks) (N/A 3250)
• 30 Gallon Fuel Tank for Generator (3250 Only)
• 2x 30 lbs. LP/Propane Tanks (Fits 20 to 40 lbs. Bottles)
• LP-IQ Propane Gauge
• Exterior LP Quick Connect
• 50-amp Electric Service
• Detachable 50-amp Power Cord w/ Angled Connector
• 35,000 BTU Furnace

Electronics

• Rockwood Fosgate - Model G Exclusive
  • 4x Independent Zones
  • 3x Amps
• Interior
  • 4x Ceiling Speakers
  • 2x Remote Panels
  • 12" Subwoofer
• Exterior (Campside)
  • Remote Panel
  • 4x Speakers
  • 10" Subwoofer
• Patio
  • 4x Speakers

Brinkley Firefly Smart-Command Center Package (Premium Build Package)

• Internet Connected Coach Control System (Premium Build Package)
• Complete iPhone, iPad, & Android App Control from Anywhere (Climate, Monitoring, Lighting, Awning Retraction, Generator [Bluetooth Only], etc.) (Premium Build Package)
• Premium Hardware w/ Performance Chips (Responsive, Fast, Operation)
• Second Garage Control Panel (Premium Build Package)
• Precise Holding Tank Monitors (10% Increments) w/ Upgraded Ever-Clean External Tank Sensors (Premium Build Package)
• Rear & Side Camera System w/ Wireless 7” Screen
• Starlink Prep
• Winegard Air 360+ TV & FM Antenna w/ Wi-Fi Booster
• 50” Phillips Smart TV (Main) (3500, 4000)
• 50" Phillips Smart TV & Televator (Powered TV Elevator) (3520, 4100, 4120, 4150, 4155, 4170)
• 65” Phillips Smart TV (Main) (3250, 3950, 3970)
• 43” Phillips Smart TV (Garage/Patio)
• 32” Phillips Smart TV (Bedroom)

Appliances

• GE Energy Star 19 Cu. Ft. Fridge w/ Ice Maker & Filtered Water
• 12v Heated Ice Maker Line (Industry 1st)
• 3-Stage Residential Water Filters (Plus In-Fridge Filter)
• GE Profile Convection Microwave w/ Air Fryer (US Market)
• GE Profile Convection Microwave (Canadian Market)
• 24” GE Profile Oven w/ 4 Burner Range & Storage Drawer
• Dishwasher Prep
• Tankless Water Heater (Controller in Main Bath)
• GE Low-Profile 13.5k High-Efficiency Main Air Conditioner w/ Heat Pump
• GE Low-Profile 13.5k High-Efficiency Bedroom Air Conditioner w/ Heat Pump
• GE Low-Profile 13.5k High-Efficiency Garage Air Conditioner w/ Heat Pump
• Exterior Drawer Fridge & Freezer – 24 Can Capacity (12v Power)
• Fireplace w/ 5,000 BTU Electric Heat
• Washer/Dryer Prep in Bedroom (Stackable or Combo)
• Washer/Dryer Prep in Garage (Stackable or Combo) [3520 & 4120 Option Deletes 1/2 Bath] (Standard; 3500, 3950, 3970, 4000, 4100, 4150, 4155, 4170) (N/A 3250) (Optional; 3520, 4120)
• Washer/Dryer Prep in Garage (Combo) (3250 only)
• Cordless Vacuum Prep w/ Outlet (Bedroom Closet)

Interior

• Residential Interior w/ Brinkley’s CraftSense™ Wood Trim Construction
• Premium Residential Cabinets & Drawers w/ Dovetail Joints
• Window Integrated Day Screens & Blackout Shades w/ Reflective Insulation + Full Bug Screens
• Residential Dimmable Ceiling Can Lighting
• L-Shaped Sofa w/ 4 Recliners (3250, 3950, 3970, 4150, 4155)
• Sofa w/ 4x Recliners & 2x Heat & Massage (3500, 4000)
• Mega Sofa w/ 5x Recliners & 2x Heat & Massage (Replaces Dinesk) (Optional; 4100, 4170 only)
• 2x Sofas w/ Recliners & Heat & Massage (3520, 4100, 4120, 4170)
• Sofa w/ 3x Recliners & 2x Heat & Massage (Replaces Dinesk) (Optional; 4150, 4155 only)
• End Tables w/ Storage & Pop-Up Outlets & USB/USB-C Ports (3500, 4000, 4100, 4150, 4155, 4170)
• Hidden Storage Cabinets (Above & Below Main TV) (3250, 3500, 3950, 3970, 4000)
• Entertainment Shelf (Above Main TV) (3500, 4000)
• Entertainment Shelf w/ Glass Front (Below Main TV) (N/A 3250, 3500, 3950, 3970, 4000)
• Floating Entrance Steps w/ Indirect Lighting & Double Deep Shoe Storage & Tray
• Pet-Friendly Package
  • Child/Pet Screen Protector
  • Ductless Floors
  • Easy-To-Clean Lino- Carpet-Free Floors
  • Magnetic Pet Feeder Tray
• Sahara Interior Decor w/Mindful Gray Sherwin Williams Paint

Kitchen & Dining

• Brinkley G Dinesk™: Convertible Dining Table/L-Desk w/ 2x Leaves (6 Positions, Seats up to 4) (N/A 3500, 3520, 4000, 4120)
• Premium Residential Kitchen Cabinets & Drawers w/ Dovetail Joints
• Adjustable Overhead Cabinet Shelves
• Residential Solid Surface Countertops & Backsplash
• Magnetic Cabinet & Drawer Catches
• Waterfall Eat-In Island w/ Flip-Up Countertop (Converts To Peninsula w/ Four-Person Eating Area) (3500, 3520, 4000, 4120)
• Eat-In Island (Seats 2) (N/A 3500, 3520, 4000, 4120)
• Kitchen Island Stools (Pair)
• Pull-Down Utensil Tray
• Pull-Down Magnetic Knife Rack
• Pull-Out Spice Rack
• Cookie Sheet Storage Space
• Large Adjustable Drawer Organizer (3250, 3950, 3970)
• Pull-Out Cutting Board
• Pull-Out Trash & Recycling Bins
• Stow n’ Go Paper Towel Caddy (N/A 3520, 4120)
• Pull-Out Pantry w/ Adjustable Shelves & Drawers (N/A 4100, 4150, 4155, 4170)
• Pull-Out Utility Closet w/ Cordless Vacuum Prep & Outlet (3250, 3950, 3970)
• Large Pantry w/ Adjustable Shelves & Appliance Outlet (4100, 4150, 4155, 4170)
• Hutch w/ Upper & Lower Cabinets (4100, 4150, 4155, 4170)
• Residential Island/Bar Pendant Light (Dimmable)
• Kitchen Work Lighting Under Overhead Cabinets
• Soffit & Island Base w/ Indirect Mood Lighting
• Premium Residential Soft Close Cabinet Doors & Drawers
• Farmhouse Black Stainless Steel Sink w/ Tuff Coat & Roller Cover
• One Piece Steel Island Base
• Maxxair Fan w/ Rain Sensor

Private Front Room

• Private Office w/Executive L-Desk (4150)
  • Electric Adjustable Height Desk (4150)
  • Hutch w/Drawers & Cabinets & Hidden Felt Fined Storage (4150)
  • Illuminated Display Shelves (4150)
• Private Bunkroom (4155)
  • Upper & Lower Bunkbeds w/Mattresses (4155)
  • Floor-to-ceiling Wardrobe w/Drawers (4155)
  • 2x Storage Cubbies w/Charging Station w/USB (4155)
  • TV Prep (Power, Mounting Backer, & Antenna/Coax) (4155)

Bedroom

• Dual Bedside Outlets w/ USB & USB-C
• Dual Bedside Shelves
• Floor-to-Ceiling Storage Cabinet w/ Washer/Dryer Prep & Collapsible Laundry Basket (N/A 4150, 4155)
• Residential Style Dresser
• Hidden Sliding Dresser Top Storage Compartment
• 4x Under-Bed Storage Drawers
• King Bed w/ 9? Residential Memory Foam Mattress & Gel Topper (70?x80?)
• Queen Bed w/ Nightstands & 9? Residential Memory Foam Mattress & Gel Topper (60? x 80?) (optional)
• Matching Comforter & Pillow Package
• Dual Motion Activated LED Bed Lighting
• Dual Reading Sconce Lights
• 3? Deep Bedside Shelf
• Dimmable Bedroom Lighting
• Walk-In Closet w/ Bright LED Closet Lighting
• Cordless Vacuum Prep w/ Outlet (Closet)
• Residential Mirrored Sliding Doors

Bathroom (Main)

• Pull-Out Linen Closet w/ Adjustable Shelves
• Pull-Out Trash Bin
• Backlit Recessed Medicine Cabinet
• Residential Shower System w/ Head, Body, & Handheld Sprayers
• Marine Grade Dotless COB Neon LED Shower Lighting
• Space Saver Bathroom Door
• Porcelain Toilet
• Toilet Paper Caddy w/ Magnetic Travel Keeper
• Solid Surface Lavatory Countertop
• Glass Sliding Shower Door
• One-piece 42"x30" Molded Fiberglass Shower (Low-Step/Max Height)
• Shower Seat Install Prep
• Overhead Shower Cove
• Matching Bath Hooks
• Maxxair Fan w/ Rain Sensor

Bathroom (Rear)

• MAX-Space™ Half Bath: (3520, 3950, 4100, 4120, 4150, 4155)
• Fold-Away Walls to Maximize Garage Space (3520, 3950, 4100, 4120, 4150, 4155)
• Flip-Down Solid Surface Sink & Countertop (3520, 3950, 4100, 4120, 4150, 4155)
• Residential Door (Rear-Opening) (3950, 4100, 4150, 4155)
• Residential Door (Side-Opening) (3520, 4000)
• Half Bath (Fixed) (3500, 4000)
• Full Bath w/ Shower (Fixed) (3970, 4170)
• Glass Sliding Shower Door (3970, 4170)
• Medicine Cabinet (N/A 3250)
• Porcelain Toilet (N/A 3250)
• Toilet Paper Caddy w/ Magnetic Travel Keeper (N/A 3250, 3520, 4120)
• Solid Surface Lavatory Countertop (N/A 3250)
• Maxxair Fan w/ Rain Sensor (N/A 3250)

Garage, Flex Space & Patio

• 6' Garage / Outdoor Kitchen / Office w/ 48" x 96" of Usable Floor Space (3250)
• 10' 6" Garage/Residential Flex Space (4170)
• 11' Garage/Residential Flex Space (3500, 3970, 4120)
• 12' 6" Garage/Residential Flex Space w/ MAX-Space™ Half Bath (4100, 4150, 4155)
• 14' Garage/Residential Flex Space w/ MAX-Space™ Half Bath (3950)
• 16' Garage/Residential Flex Space (4000)
• 11' Garage/Residential Flex Space w/ MAX-Space™ Half Bath (3520)
• 11' Garage/Residential Flex Space w/ Washer/Dryer Prep (Delete 1/2 Bath for Credit) (Optional; 3520 only)
• 17' Garage/Residential Flex Space w/ MAX-Space™ Half Bath (4120)
• 17' Garage/Residential Flex Space w/ Washer/Dryer Prep (Delete 1/2 Bath for Credit) (Optional; 4120 only)
• Garage Dovetail Storage Box (Lockable) (N/A 3250)
• Happijac® Bed & Sofa Motorized Lift System: (N/A 3250)
• 2x Fold-Flat Sofas w/ Armrest Cup Holders & Independent Operation (N/A 3250)
• Overhead Drop-Down Bed w/ Mattress & Telescoping Ladder (N/A 3250)
• Overhead Loft/Storage w/ Cable Railing, Telescoping Ladder, & Mattress (N/A 3950, 3970, 4100, 4150, 4155, 4170)
• Overhead Loft/Storage w/ Cable Railing, Telescoping Ladder, & Twin Mattress (3950, 3970, 4100, 4150, 4155, 4170)
• Dotless COB Neon LED Garage Lighting (Dimmable)
• Prep for Cargo Camera (N/A 3250)
• Fold n’ Stow Table (N/A 3250)
• Campside Rear Entrance Package
  • Child/Pet Screen Protector
  • Slapshot Screen Door Opener
  • Screen Assist-Bounceback Technology
  • Solid Four-Step Stairs
  • Telescoping Entry Handrail (Extends to Bottom Step_
  • Motion-Activated Under-Step LED Lighting
• Adjustable Tie-Down System w/ 3x Recessed L-Tracks w/ Covers (N/A 3250)
• Adjustable Tie-Down System w/ 2x Recessed L-Tracks w/ Covers (3250 only)
• Tough-Ply Floor & Walls in Storage Compartments (Gray)
• 100? Zero-Gravity Composite (No Wood) Ramp Door w/ Electric Top Latches (Low-Pitch)
• True Double Insulated Garage Floor w/ Heated Thermal Cavity
• 3 Season White Patio Doors w/ Screens & Tinted Windows
• Residential Style Wire Patio Railing, Power Lateral-Arm Awning, & Steps
• Outdoor Kitchen Package (3250 Only)
  • Bar Sink (3250 Only)
  • Pull-Out Trash Bin (3250 Only)
  • 4.5 Cu. Ft. Refrigerator (3250 Only)
  • Upper & Lower Cabinets (3250 Only)
  • Solid Surface Countertops (3250 Only)
• Pass-Through Kitchen Window w/Removable Panes & Storage Rack (3250 Only)
• Under-Step Shoe Storage Tray (3250 Only)
• Electric Adjustable Height Desk/Work Surface w/Power (3250 Only)
• 3x Fold-Down Coat Hooks (3250 Only)

Construction

• Brinkley Automotive Exterior Seals Package
• Impact Guard Fiber-Reinforced Poly Roof (Premium Build Package)
• Low-Maintenance Roof
• Basement Utility EZ-Access w/ Removable Sliding Doors & Hinged Panels
• Flush Floor Galley & Livingroom Slides (Industry 1st)
• Bedroom Slim Rack Slide-Out System
• Automotive-Style Riveted Wheel Skirts & Panels
• Laminated Exterior Walls w/ High-Gloss Gel Coat Fiberglass & Azdel
• Reinforced & Walkable Slide-Out Roofs
• Dual Attic Vents
• Thermaflex® No Kink No Tear Heat Ducts
• Thermofoil Insulated & 12v Heated Holding Tanks w/ Steel Cross Supports
• Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)
• Magnetic Wire Access Hatch (Behind Toilet)
• Clear "No Surprises" Sewer Cap w/ Lanyard
• Wire Conduit for Aftermarket Upgrades (Roof> Interior> Basement)
• Water Shutoff Valve on ALL Fixtures
• Brass Plumbing Fittings (Segment First)
• Industry Best Insulation Package:
• R40 Roof, R11 Walls, R40 Floor Insulation
• Double Insulated Roof, Front Cap, & Main Floor
• Heated & Enclosed Underbelly (Circulated Forced Air)
• Insulated Slide-Out Floors
• Radiant Heat Barrier w/ Foam Underbelly & I-Beam Insulation
• True Double Insulated Garage Floor w/ Heated Thermal Cavity
• Insulated & Trimmed Pinbox
• Every Coach Every Time Industry Leading Pre-Delivery Tests & Inspection Process:
• Industry Leading 350+ Point Inspection & Testing Process
• Off-Road Simulation Tested (Industries Exclusive)
• Complete Unit Pressure Test (Seals, Gaskets, Slide-Out, Etc.)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Who is Brinkley?

Our ownership team is comprised of five equal partners representing decades of RV experience. We have a strong track record of creating and influencing some of the industry’s most successful RV companies, including many of today’s top-selling fifth wheel and travel trailer brands.

Why did we start Brinkley?

We noticed a distinct shift in the RV industry in recent years and felt a sense of responsibility to our customers to re-ignite cutting-edge innovation and bring back customer-driven product designs that will raise the bar for everyone. More importantly, we saw a gradual decline in quality and a skewed perception of what it means to take care of the customer. We are excited to prove to our customers that there is a better way. We are passionate and committed to building high-quality RVs and servicing them like never before! We encourage you to research us and Brinkley RV. The more you know about us, the more you’ll see that we’re building something different. We are relentless in our pursuit of the ULTIMATE CUSTOMER EXPERIENCE! We will never stop in our quest to be the best and most reputable RV manufacturer in the industry.
